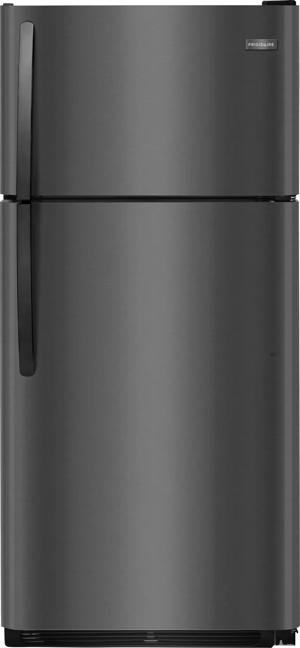

Frigidaire 18 Cu. Ft. Top Freezer Refrigerator

30" W x 30-1/8" D x 66-1/8" H
fftr1821td

  • bvseo_sdk, net_sdk, 3.2.0.0
  • CLOUD, getAggregateRating, 462ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;

This is a discontinued product

Register This Product

Guides & Manuals

Complete Owner's Guide

Wiring Diagram

Installation Instructions

Installation Instructions

Installation Instructions

Product Specifications Sheet

Energy Guide

Specifications

General Specifications

  • Annual Energy Cost (.12 / kWH): 48
  • Made In USA: Yes
  • Reconditioned: No
  • Garage Ready: No
  • Shipping Weight (lbs): 205
  • Annual Energy (kWH): 404
  • Condenser Type: Dynamic
  • Power Type: Electric
  • Size: 18 Cu. Ft.
  • Installation Type: Free-Standing
  • Collection: Frigidaire

Certifications & Approvals

  • ENERGY STAR® Certified: No
  • ETL Listed: No
  • UL Listed: Yes
  • CSA Listed: Yes
  • NSF® Certified: No
  • ADA Compliant: Yes
  • CSA Certified: Yes

Fresh Food

  • Fixed Door Racks: 3 Full-Width – White
  • Lighting Design: Standard
  • Dairy Compartment: Clear Dairy Door
  • Crispers: 2 Clear
  • Gallon Door Storage: 1
  • Sliding Shelves: 2 Full-Width Glass
  • Humidity Controls: 2
  • Meat / Deli Drawer: Half-Width Deli

Exterior Specifications

  • Front Rollers: Fixed
  • Handle Design: Color-Coordinated Plastic
  • Door Gasket: Color-Coordinated
  • Cabinet Color: Black
  • Reversible Door: Yes
  • Rear Rollers: Yes
  • Name Badge: Frigidaire
  • Door Stops: Yes
  • Door Style: UltraSoft™
  • Door Finish: Textured
  • Toe Grille: Color-Coordinated
  • Door Hinge Covers: Color-Coordinated
  • Door Design: Short Door

Ice Maker

  • Ice Maker: Optional
  • Ice Maker Type: IM-116

Freezer Specifications

  • Fixed Freezer Shelves: 1 Full-Width Wire
  • Fixed Door Racks: 2 Full-Width White

Exterior Dimensions

  • Case Width: 29-5/8"
  • Depth: 30-1/8"
  • Depth with Doors and Handles: 32-1/8"
  • Depth with Doors (no Handles): 29-7/8"
  • Case Height: 65-3/8"
  • Depth with Doors (no Handles): 29-7/8"
  • Height with Hinges and Covers: 66-1/8"
  • Depth (with Door 90° Open): 58-1/2"
  • Depth with Doors and Handles: 32-1/8"
  • Height with Hinges and Covers: 66-1/8"
  • Case Depth: 26-5/8"
  • Height to Top of Door: 66"
  • Height: 66-1/8"
  • Width: 30"
  • Width between Door Edges: 30"

Controls

  • Controls: Mechanical
  • Control Location: Top Center

Electrical Specifications

  • Voltage Rating: 120V 60Hz
  • Amps @ 120 Volts: 6
  • Power Supply Connection Location: Right Rear Bottom
  • Minimum Circuit Required (Amps): 15A
  • Connected Load (kW Rating) @ 120V: 0.72

Capacities

  • Total Shelf Area (Sq. Ft.): 22.5
  • Freezer Capacity (Cu. Ft.): 3.9
  • Fresh Food Shelf Area (Sq. Ft.): 16.2
  • Freezer Shelf Area (Sq. Ft.): 6.3
  • Capacity (Cu. Ft.): 18
  • Fresh Food Capacity (Cu. Ft.): 14.1
