Frigidaire Gallery 1.7 Cu. Ft. Over-The-Range Microwave

29-7/8" W x 15-1/32" D x 16-13/32" H
fgmv176ntb

1.7 Cu. Ft. Over-The-Range Microwave is rated 4.5 out of 5 by 2962.
  • y_2020, m_3, d_25, h_15
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.5
  • cp_1, bvpage1
  • co_hasreviews, tv_65, tr_2897
  • loc_en_US, sid_FGMV176NTB, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_frigidaire
  • bvseo_sdk, net_sdk, 3.2.0.0
  • CLOUD, getAggregateRating, 180ms
  • REVIEWS, PRODUCT

Register This Product

Guides & Manuals

Complete Owner's Guide

Complete Owner's Guide

Complete Owner's Guide

Wiring Diagram

Installation Instructions

Installation Instructions

Installation Instructions

Product Specifications Sheet

FAQs

  • Is it okay to install my microwave over a gas range?

    Yes. All of our over-the-range (OTR) microwaves are certified by Underwriters Laboratories for use over a gas range.

  • Why do metal objects spark or arch when I use them in the microwave, but the metal rack that comes with the microwave doesn’t?

    Unlike other metal objects, the metal rack included with your microwave is specially designed for safe use. The design takes into account the pattern of microwaves to prevent arching and sparks. For example:
    • The plastic spacers which hold the rack in place are engineered to keep it from arching against the microwave’s sides.
    • The rack’s tines and outer edges are engineered to form a fully enclosed object, avoiding the open ends that lead to arching.
    No other metal objects, including pans, utensils, etc. are approved for use inside a microwave.

  • Where does my OTR microwave vent?

    All of our over-the-range (OTR) microwaves are factory preset to vent internally – it will recirculate the air back into the room. However, it can also be converted to vent externally, or outside, if you prefer. If this is your preference, please let the installer know before they begin the initial installation and they will share the option that best suits your installation situation.

  • What hardware should I use for installing my microwave?

    Your over-the-range (OTR) microwave, it will come with all the necessary installation hardware. Each of our models comes with a complete set of installation hardware.

  • Do I need a special plate to cook popcorn in my microwave?

    If your microwave model has a glass tray or turn table, then follow the instructions printed on the popcorn label and place the bag on the turn table. In some instances, if you have a metal turn table (instead of glass), you do need to set the popcorn bag on a popcorn/bacon plate. This plate will lift the popcorn bag off of the microwave’s metal turntable, which can otherwise interfere with the metal contained in the popcorn bag.

  • How do I use Microwave Convection?

    For step-by-step instructions on how to use PowerPlus ™ 2-in-1 Convection in your Microwave, click here.

  • How do I change the oven light on my over-the-range microwave?

  • How do I change the surface light in my microwave?

  • How do I clean my microwave?

  • How and when should I use the ventilation fan on my over-the-range microwave?

Features

Effortless Clean™ Interior

Effortless Clean™ Interior

Easily wipe away and clean spills from your microwave with the Effortless Clean™ Interior surface.

Sensor Cooking

Sensor Cooking

Microwave automatically adjusts power levels and cooking times to cook a variety of items, effortlessly.

Cooktop LED Lighting

Cooktop LED Lighting

Make meal preparation and cooking simple with LED lighting that offers a clear, bright view of your cooktop.

Over 30 Options

Over 30 Options

Versatile settings include: Chicken nuggets and snacks.

Effortless™ Reheat

Effortless™ Reheat

Reheat almost anything at the touch of a button.

Interior LED Lighting

Interior LED Lighting

LED interior microwave light stays on while your dish cooks.

SpaceWise® Rack

SpaceWise® Rack

Our SpaceWise® Rack creates more room so you can cook multiple dishes at once.

One-Touch Options

One-Touch Options

Our microwaves feature easy-to-use one-touch buttons so you can cook baked potatoes, popcorn or even add 30 seconds with the touch of a button.

Extra-Large 13-1/2" Diameter Glass Turntable

Extra-Large 13-1/2" Diameter Glass Turntable

Big bowls and large casserole dishes are no problem for our extra-large glass turntable. It rotates for even cooking.

Specifications

General Specifications

  • Gallery Collection: Yes
  • Product Weight (lbs): 54
  • Shipping Weight (lbs): 61.7
  • Power Type: Electric
  • Size: 1.7 Cu. Ft.
  • Installation Type: Over-the-Range
  • Collection: Frigidaire Gallery

Exterior Specifications

  • Exterior Finish: Black

User Modes

  • User Preferences: Yes
  • Child Lock: Yes
  • Clock: Yes
  • Language (En/Fr/Sp): Yes
  • User Selectable Weight (lb/kg): Yes
  • Demo Mode: Yes

Cut-Out Dimensions

  • Cut-Out Width: 30"
  • Cut-Out Depth (Min): 12"
  • Cut-Out Depth (Max.): 14"
  • Cut-Out Height (Min): 16-3/4"
  • Cut-Out Height (Max): 17"

Capacities

  • Capacity (Cu. Ft.): 1.7

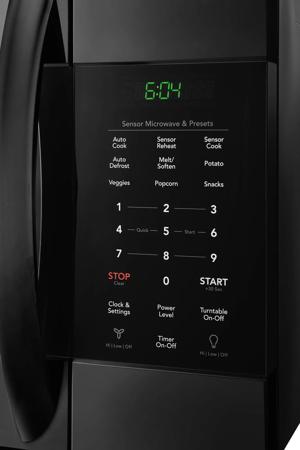

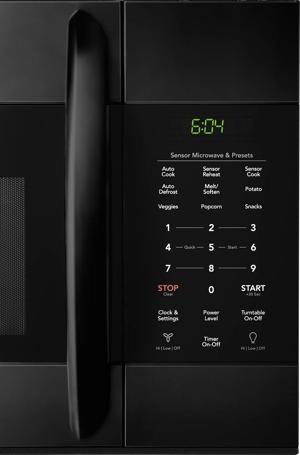

Controls

  • Controls: Membrane
  • Display Type: VFD
  • Display Color: Green
  • Touch Pad Buttons: 28
  • Electronic Clock: Yes in User Pref
  • Timer Function: 99:99
  • Stop / Cancel Button: Yes
  • Start Button: Yes with 30 sec add feature
  • Quick Settings (Time): Yes
  • Add 30 Seconds: With Start pad
  • Turntable On / Off: Yes
  • Numeric Touch Pad: Yes
  • Power Levels: High / 1-9

Vent & Light System

  • Exhaust Fan Speeds: 2 speeds - Off 105 300 CFM
  • Vent Style: Hidden
  • Ducted / Ductless Vent Installation: Yes
  • Grease Filter (Dishwasher Safe): 2
  • Charcoal Filter: Yes
  • Cooktop Light: LED 6 Light Module x 2
  • Lights: 2
  • Heat Deflector: Yes
  • Auto-start Heat Sensor: Yes

Certifications & Approvals

  • UL/cUL Approval: Yes - UL
  • CDRH Approval: Yes

Microwave Oven Specifications

  • Watts: 1000
  • Microwave Turntable Diameter: 13-19/32
  • Interior Light Wattage: LED 6 Light Module
  • Frequency (Mhz): 2450

Auto Features

  • Auto Defrost Options: 3 Options (Meats Poultry Fish)
  • Snack Menu Options: 5 Options - Beverage Frozen MW Pizza Hot Dogs Meal in a Cup Frozen Kids Meals)
  • Auto Defrost (Keep Warm): No

Accessories

  • Removable Metal Rack: Included

Electrical Specifications

  • Power Supply Connection Location: Right Rear Top
  • Voltage Rating: 120V 60Hz
  • Connected Load (kW Rating) @ 120V: 1.6
  • Amps @ 120 Volts: 14.2

Internal Specifications

  • Oven Interior: White
  • Interior Light: Yes
  • Microwave Interior Width: 20-15/16"
  • Microwave Interior Depth: 14-13/32"
  • Microwave Interior Heigh: 9-7/16"

Sensor Features

  • Sensor Cooking Options: Yes
  • Popcorn Button: Yes
  • Snack Button: Yes
  • Vegetable Cook Sensor: Yes

Exterior Dimensions

  • Width: 29-7/8"
  • Depth: 15-1/32"
  • Height: 16-13/32"

Reviews

Rated 4 out of 5 by from Like the ease of operating and the features. I very much like this microwave. The ease of operating and the features. Plus it has an attractive style. The only negative I have found thus far is the continuous beeping once something has been warmed up. Otherwise, all is good here!
Date published: 2020-03-24
Rated 4 out of 5 by from What's not to like? Standard. Nothing special. Microwave came installed in my new home by builder. Door creaked. Frigigaire repaired prompty. No muss no fuss. I can't know if the problem was in the unit, or the builder's installation. Based on other facets of my home.....I'd go with the builder.
Date published: 2020-03-24
Rated 5 out of 5 by from So much faster! Love the clean lines of this product - also the bright, large and highly visible current time displayed in large, bold numbers. Most everything we do now is done really FAST! A pleasure to own and use every single day!
Date published: 2020-03-24
Rated 5 out of 5 by from Excellent Appliance We purchased this two months ago at our local Lowe's. We have been very pleased with the quality of the microwave. It truly compliments our Frigidaire oven. It has all the features that we needed and the disign is perfect
Date published: 2020-03-24
Rated 5 out of 5 by from Great looking microwave This microwave compliments our other new Fridigadare Gallery appliances. We are very pleased with the features and ease of use.
Date published: 2020-03-23
Rated 5 out of 5 by from Easy to use features Best Buy in comparison to units in store and online
Date published: 2020-03-23
Rated 5 out of 5 by from Expanded features Really like all the options it provides on the face of the microwave.
Date published: 2020-03-23
Rated 5 out of 5 by from Has what I was looking for! Bought this and the matching stove and refrigerator, great set.
Date published: 2020-03-23
