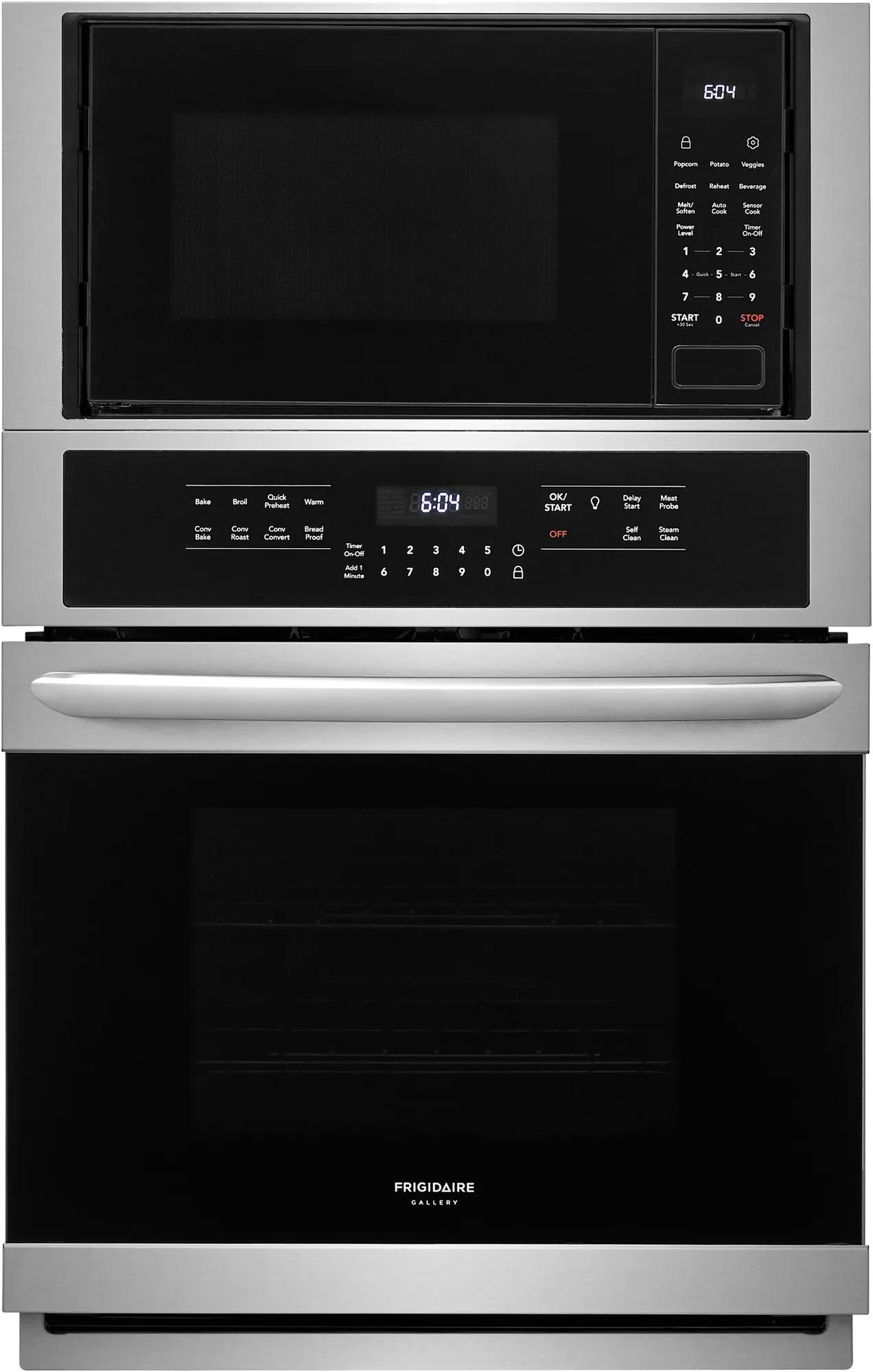

Frigidaire Gallery 27'' Electric Wall Oven/Microwave Combination


fgmc2766uf

27" Electric Wall Oven/Microwave Combination is rated 3.9 out of 5 by 24.
  • y_2020, m_2, d_17, h_17
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.5
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_24
  • loc_en_US, sid_FGMC2766UF, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_frigidaire
  • bvseo_sdk, net_sdk, 3.2.0.0
  • CLOUD, getAggregateRating, 480ms
  • REVIEWS, PRODUCT

Register This Product

Guides & Manuals

Complete Owner's Guide

Complete Owner's Guide

Wiring Diagram

Installation Instructions

Installation Instructions

Installation Instructions

Product Specifications Sheet

FAQs

  • How do I keep my racks gliding smoothly?

    To keep your oven racks gliding smoothly when you’re removing or inserting them, we recommend applying cooking oil along their outer edges.

  • How do I set my oven to self clean?

    To self-clean your oven, just follow these simple steps:

    1. Remove all oven racks – except any porcelain ones.
    2. Set your oven control to Clean.
    3. Select a cleaning time, or choose a cleaning level: light, medium, or heavy soiled. For normal cleaning needs, we recommend selecting a cleaning time of three hours or choose the medium setting.
    4. Select Start. (To set a delayed start, see your use and care manual.)



    Note: For safety reasons, your oven door will remain locked during cleaning. When the oven is sufficiently cool again, the door will automatically unlock.

  • What does it mean if the oven display is flashing codes that I’m not familiar with?

    These codes mean that the oven’s electronic control has detected a condition it needs to check. When you see a code, follow these steps:

    • Press STOP/CLEAR to clear the display and stop the beeping.
    • Reprogram the oven.
    • If the code still displays, turn off the power to the oven at your breaker box and wait five minutes to turn it back on.

    If the code is still displayed after you’ve followed these steps, contact your local authorized service provider.

  • Is it normal for the oven’s fan to run after the oven has been turned off?

    Yes, this is normal. The fan stays on in order to help cool the oven.

  • What should I do if my oven is cooking too slowly or too fast?

    You can check the actual oven temperature with an oven thermometer, then compare that reading to the setting on the oven’s control. If there is a significant difference, some models will let you adjust the oven temperature. Instructions for doing this can be found in your owner’s manual, under “Adjusting Oven Temperature.”

  • What does Real Stainless Steel mean?

    Frigidaire’s Real Stainless Steel is true stainless steel that has been treated with a protective coating that reduces fingerprints and smudges, making it much easier to clean.

  • What is convection cooking? What are the benefits?

    Convection cooking is cooking with the added advantage of airflow circulation, which allows for a more even distribution of heat. By using the forced flow of hot air, convection cooking produces the following benefits:

    • Cooking time is approximately 25-30% faster than conventional ovens, saving energy.
    • The more even distribution of heat results in food that is more evenly baked.
    • Generally, less heat is required than with a conventional oven—a convection oven usually cooks at 25°F below a conventional oven's required temperature.

Features

Faster, More Even Baking  Results with True Convection

Faster, More Even Baking Results with True Convection

Get faster, more even multi-rack baking with a powerful convection fan and third heating element that evenly circulates hot air throughout the oven.

Effortless™ Temperature Probe

Effortless™ Temperature Probe

The Effortless ™ Temperature Probe detects and alerts when the desired finished cooking temperature has been reached and automatically switches to the keep warm setting.

Quick Preheat

Quick Preheat

Preheat in just a few minutes.1

Steam Clean

Steam Clean

A 30-minute light oven cleaning that’s chemical-free, odor-free, and fast.

Sensor Cooking Options

Sensor Cooking Options

Microwave automatically adjusts power levels and cooking times to cook a variety of items, effortlessly.

Smudge-Proof® Stainless Steel

Smudge-Proof® Stainless Steel

Resists fingerprints and cleans easily.

Easy to Clean with Self-Cleaning

Easy to Clean with Self-Cleaning

Your oven cleans itself - so you don't have to. Self clean options available in 2, 3, and 4-hour cycles.

Effortless™ Reheat

Effortless™ Reheat

Reheat almost anything at the touch of a button.

One-Touch Keep Warm Setting

Just one touch of a button keeps food warm until everything - and everyone - is ready.

Delay Clean Option

Set the oven to begin cleaning on your schedule.

Specifications

General Specifications

  • Product Weight (lbs): 250
  • Power Type: Electric
  • Size: 27''
  • Installation Type: Built-In
  • Collection: Frigidaire Gallery

Oven Specifications

  • Oven 1 Bake: 2500 Watts
  • Oven 1 Baking System: True Hidden Bake
  • Oven 1 Broil: 6 pass 4000 Watts
  • Oven 1 Broiling System: Variable (400°F to 550°F)
  • Oven 1 Cleaning System: Self Clean w/Steam Clean Option
  • Oven 1 Convection: 2500 Watts
  • Oven 1 Convection System: Single Fan
  • Oven 1 Interior Color: Midnight Black
  • Oven 1 Interior Depth: 18-3/4"
  • Oven 1 Interior Height: 17"
  • Oven 1 Interior Lighting: 2 Halogen
  • Oven 1 Interior Width: 20-1/2"
  • Oven 1 Rack Configuration: 1 HD Handle 1 Offset
  • Oven 1 Rack Positions: 5 positions
  • Oven 1 Type: Main
  • Oven Window: Large

Internal Specifications

  • Microwave Interior Depth: 18-5/8"
  • Microwave Interior Height: 10-1/2"
  • Microwave Interior Width: 17-3/8"

Certifications & Approvals

  • ADA Compliant: No
  • Agency Approval: UL
  • Sabbath Mode (Star-K® Certified): Yes

Microwave Oven Controls

  • Auto Cook Option(s): 3 Options (Bacon Frozen Entree Rice)
  • Baked Potato: Yes
  • Chicken Nuggets: No
  • Defrost Options: 3 Options (Meat Poultry Fish)
  • Keep Warm: No
  • Melt/Soften: 4 Options (Butter Chocolate Ice Cream Cream Cheese)
  • Numerical Pad: Yes
  • Popcorn: Yes
  • Power Level Button: Yes
  • Reheat Option(s): 3 Options (Dinner Plate Soup/Sauce Casserole)
  • Sensor Cook Option(s): 4 Options (Frozen Breakfast Ground Meat Fish or Seafood Chicken Breast)
  • Sensor Reheat: No
  • Snack Option(s): No
  • Start Button: Yes
  • Stop Button: Yes
  • Timer On-Off: Yes
  • User Preferences: Yes
  • Veggies Button: Yes

Cut-Out Dimensions

  • Cut-Out Depth: 23-3/4"
  • Cut-Out Height: 41-1/8" - 41-1/4"
  • Cut-Out Width: 24-7/8" - 25-1/4"

Capacities

  • Microwave Capacity (Cu. Ft.): 1.6
  • Oven 1 Capacity: 3.8

Microwave Oven Specifications

  • Frequency (Mhz): 2450
  • Interior Light: LED
  • Microwave Turntable Diameter: 13.5"

Accessories

  • Meat Probe: Yes

Cooking Controls

  • Add-a-Minute: Yes
  • Bake: Yes
  • Cook Duration: Yes
  • Broil: Variable
  • Cancel Button: Yes
  • Convect: Bake Roast
  • Convection Conversion: Yes
  • Start Time: Multiple Functions
  • Keep Warm: Yes
  • Lockout: Yes
  • Numerical Keypad: Yes
  • Oven Light: Yes
  • Quick Preheat: Yes
  • Self-Clean: 2 3 4 Hours
  • Set Clock: Yes
  • Start Button: Yes
  • Timer: Yes

Electrical Specifications

  • Amps @ 240 Volts: 30.38 / 35.25
  • Connected Load (kW Rating) @ 240V: 7.9 / 5.9
  • Minimum Circuit Required (Amps): 30A
  • Power Supply Connection Location: Left Rear Bottom
  • Voltage Rating: 240V / 208V 60Hz

Reviews

Rated 5 out of 5 by from As advertised Great unit with all the features we wanted. Works great easy to use.
Date published: 2020-02-16
Rated 5 out of 5 by from Great features Clean lines, enjoy the quick pre-heat function. Clean lines & looks great!
Date published: 2020-02-10
Rated 4 out of 5 by from Very accurate oven and microwave I don’t think I’ve ever had an oven and microwave this accurate. Everything that I’ve cooked comes out “like it should” no need to adjust temperatures or cook time on recipes, reason for four instead of five stars is the oven doesn’t come with the meat probe so you need to pay more money for a feature that the oven has.
Date published: 2020-02-10
Rated 3 out of 5 by from Good if on sale I bought this item in December and unfortunately it had a defective motherboard so I had to have it repaired under warranty. Even fixed, the buttons on the oven part are a bit temperamental and sometimes it doesn't recognize the touch. I also find the fan in the oven very loud and annoying but I can live with it. There is also a popping sound when the oven is on and gets to a certain temperature. Both the microwave and oven do their job and I am happy overall with the item. I just definitely would never pay the advertised full price for this oven.
Date published: 2020-02-08
Rated 2 out of 5 by from Problem w Microwave heating coil Unsatisfied w warranty lack of 100% coverage after 1 week of use when microwave failed. Not my fault yet company refuses to cover de-install and reinstall required in repair.
Date published: 2020-02-04
Rated 5 out of 5 by from PERFECT EXCELLENT product. Very well made. Great oven / convection oven combination. Stylish controls, very user friendly!
Date published: 2020-01-25
Rated 4 out of 5 by from nice looking unit . Great features. Seems well built. Good value. Easy to install. Oven touch pad is not sensitive enough. Micro turntable does not sync to 60 seconds
Date published: 2020-01-09
Rated 4 out of 5 by from Great appliance! Love this oven and microwave combo! I've had it now for almost two months and can't seem to use it enough.
Date published: 2019-12-29
