Smudge-Proof™ Black Stainless Steel
Practical has never looked so stylish with Smudge-Proof™ Black Stainless Steel, a beautiful new finish with an easy-to-clean fingerprint resistant surface.
Counter Depth Design
Maximize your kitchen space with our counter-depth design that gives you over 4 inches of kitchen floor space back while still offering over 100 ways to organize.
Humidity controlled crispers maintain moisture for market fresh produce.
Effortless™ Glide Crisper Drawers
Our humidity-controlled crisper drawers can be configured any number of ways, either side-by-side or stacked on top of each other so you can organize your refrigerator the way you want.
PureSource Ultra®II Ice & Water Filtration
Discover how our genuine filtration works to keep your water cleaner. PureSource Ultra® II Water Filters remove 99.3% of lead and 99.9% of cysts from your household water.
PureAir Ultra® II Filters
Our PureAir Ultra® air filters effortlessly keep the air in your refrigerator fresh.
Maintain an even temperature throughout the refrigerator.

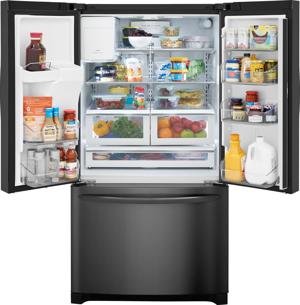

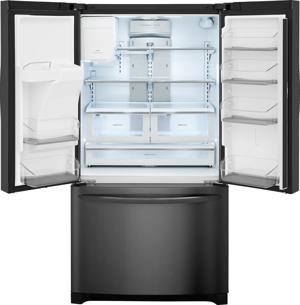

Adjustable Interior Storage
Over 100 ways to organize and customize your refrigerator.
Store-More™ Flip-Up Shelves
Easily make room for tall or large items.
More space to store your food with edge-to-edge shelves.
Full-Width Cool-Zone™ Drawer
A large capacity Cool Zone™ drawer extends completely and provides space to easily store anything from sheet cakes and large platters to snacks and juice boxes.
Easily select options with the touch of a button.
Freezer Basket with Divider
Deep freezer storage with adjustable divider keeps food organized and accessible.
Effortless™ Glide Freezer Drawers
Drawers glide out smoothly and fully extend, giving you easy access to what's inside.
- Frost Free: Yes
- Annual Energy (kWH): 660
- Condenser Type: Dynamic
- Sound Package: Quiet Pack
- Water Inlet Location: Left Rear Bottom
- Made In USA: No
- Power Type: Electric
- Size: 22 Cu. Ft.
- Installation Type: Free-Standing
- Collection: Frigidaire Gallery
Weight and Dimensions
- Shipping Weight (lbs): 347
- Product Weight (lbs): 334
- Freezer Lighting: LED
- Drawer: Yes
- Lower Basket Design: Deep Plastic Basket with Adjustable Divider
- Lower Adjustable Basket Dividers: White
- Upper Basket Design: Full-Width
- Upper Basket Construction: Powder-Coated Wire Silver
Certifications & Approvals
- ENERGY STAR® Certified: Yes
- Sabbath Mode (Star-K® Certified): Yes
- CSA Certified: Yes
- ADA Compliant: No
- Capacity (Cu. Ft.): 21.7
- Fresh Food Capacity (Cu. Ft.): 14.9
- Freezer Capacity (Cu. Ft.): 6.8
- Total Shelf Area (Sq. Ft.): 23.14
- Fresh Food Shelf Area (Sq. Ft.): 17.86
- Freezer Shelf Area (Sq. Ft.): 5.28
- Dispenser Type: Flush Single Paddle
- Crushed Ice: Yes
- Cube Ice: Yes
- Water: Yes
- Dispenser Light: Yes
- Display On/Off: Yes
- Height: 69-7/8"
- Width: 36"
- Depth: 28-1/2"
- Case Height: 68-5/8"
- Height with Hinges and Covers: 69-7/8"
- Case Width: 35-7/8"
- Case Depth: 23-7/8"
- Depth with Doors (no Handles): 28-1/2"
- Depth with Doors and Handles: 31"
- Depth (with Door 90° Open): 42-1/2"
- Voltage Rating: 120V 60Hz
- Amps @ 120 Volts: 8.5
- Minimum Circuit Required (Amps): 15A
- Connected Load (kW Rating) @ 120V: 1.02
- Power Supply Connection Location: Right Rear Bottom
- Counter-Depth: Yes
- Door Design: Tall
- Door Style: Soft-Arc
- Name Badge: Gallery
- Handle Design: Gallery
- Door Hinge Covers: Hidden
- Cabinet Finish: Textured
- Front Rollers: Adjustable
- Rear Rollers: Yes
- Door Stops: Yes
- Door Closers: Yes
- Ice Maker: Yes 2nd Ice Maker Optional
- Ice Maker On/Off: Yes
- Lighting Design: LED
- Lighting Levels: Multi-Level
- Water Filter: PureSource® Ultra II
- Water Filter Location: Top-Right Fresh Food Section
- Air Filter: PureAir Ultra® II
- Air Filter Location: Air Tower
- Cantilever Shelves: Yes
- Crispers: 2 Clear - CrispSeal
- Humidity Controls: 2
- Meat / Deli Drawer: Full-Width Cool Drawer
- 1-Gallon Adj Door Bins: 2 Clear
- Store-More™ Fixed Door Bins: 2 Clear
- Dairy Compartment: No
- Drawer Trim: Yes
- Drawer Trim Color: White with Metallic Accents
- Fixed Quarter-Width Shelves: 1 Flip-Up
- Controls: Express-Select®
- Control Location: Dispenser
- Control Buttons: 11
- Water Filter Change Indicator Light: Yes
- Air Filter Change Indicator Light: Yes
- Supplemental Freeze: Quick Freeze
- Ice Maker Location: Fresh Food Section
