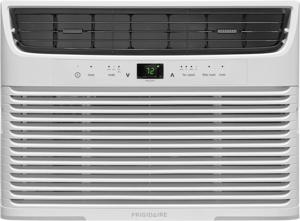

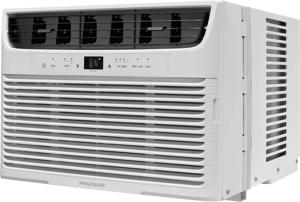

Frigidaire 10,000 BTU Window-Mounted Room Air Conditioner

19" W x 21-1/2" D x 14-1/2" H
ffra102za1

10,000 BTU Window-Mounted Room Air Conditioner is rated 4.6 out of 5 by 30.
  • y_2020, m_3, d_25, h_15
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.5
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_30
  • loc_en_US, sid_FFRA102ZA1, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_frigidaire
  • bvseo_sdk, net_sdk, 3.2.0.0
  • CLOUD, getAggregateRating, 355ms
  • REVIEWS, PRODUCT

Register This Product

Guides & Manuals

Complete Owner's Guide

Complete Owner's Guide

Complete Owner's Guide

Installation Instructions

Installation Instructions

Installation Instructions

Product Specifications Sheet

Energy Guide

FAQs

  • What is the proper way to clean my air filter?

    The air filter should be checked at least once a month to see if cleaning is necessary. Be sure to unplug the unit before cleaning to prevent shock or fire hazards. To clean the filter, open the front panel and remove. The air filter is reusable and may be cleaned using liquid dishwashing detergent and warm water. After cleaning allow the filter to thoroughly dry before replacing. You may also vacuum the air filter to remove excess dirt and particles.

  • Can my room air conditioner be covered while in use to prevent outdoor debris from getting inside vents?

    Proper air flow into the air conditioner is essential for performance and safe operation. Under no circumstances should you block or cover any exterior or interior vents of the unit.

  • How does the power cord work on my air conditioner? When should I test the plug?

    For your safety all Frigidaire air conditioners feature a 3-prong grounding plug and current leakage detection device. These enhanced plugs help to detect damages to the power cord and can be tested following a few simple steps. 1. Press the reset button 2. Plug the cord into the power outlet 3. Press the test button, the reset button should pop up 4. Press reset button for use 5. Do not use room air conditioner if above test fails. For more information please consult your use and care manual.

  • What is the additional vent located under my air louvers?

    On select models, you may notice a small tab identified with Open / Fresh Air / Closed.

    This fresh air vent allows the air conditioner to: 1. Recirculate inside air - Vent Closed 2.  Draw fresh air into the room - Fresh Air  3.  Expel indoor air outside - Vent Open. Note: When in the cool mode fresh air venting or exhaust venting will affect cooling and decrease performance.

  • I have noticed water dripping outside of my room air conditioner, is this normal?

    Water dripping outside is a normal function of the room air conditioner, especially during periods of excessive humidity. If condensation need to be directed, window air conditioners have a key hole drain in the bottom of the unit where one could connect a ½” drain hose for safe disposal of excess system water.  Part: EA150D / 5304481680. Never drill holes into the bottom of the room air conditioner to remove water. If water is dripping inside the room during the cooling, this is due to improper installation. Please refer to installation instructions or check with your local installer.

  • I have noticed that my ENERGY STAR air conditioner is frequently in Econ mode?

    For all new ENERGY STAR products the EPA has regulated that all ENERGY STAR air conditioners must be factory set to Energy Saver (Econ) mode. If you turn the room air conditioner off in cool mode, and restart the unit it will default back into Energy Saver mode. You may select out of Energy Saver mode by selecting the mode button, however we recommend using the feature to help save energy.

  • What is Econ mode?

    Econ mode, or Energy Saver mode, is a setting that works similar to central AC. The room air conditioner will turn off once the set temp is reached; the fan then cycles on (for 20 sec.) every 10 min to sample the air temp. If the room temp is above the set temp, the compressor will turn back on. Since the room air conditioner is not running at all times, this setting will help save energy while ensuring the room temperature stays at the set temperature.

  • What does the Clean Air button do?

    When this feature is on, the electronic air purifier is energized to remove pollen and impurities from the air. To cancel this feature, press the Clean Air button.

  • What is a BTU?

    It is a professional term rating an air conditioner. BTU stands for British Thermal Unit - the quantity of heat required to raise the temperature of one pound of water one degrees Fahrenheit. The higher the BTU the larger space the room air conditioner will cool.

  • What size window unit do I need?

    The size of the window unit needed will depend on the size of the room you wish to cool. To determine which size you need, measure the width of the room by the length and multiply those numbers together to determine the square footage.





  • What happens if I lose power?

    After a power outage, the unit will memorize the last setting and return the unit to the same setting once power is restored.

  • What does Sleep Mode mean?

    When this mode is enabled, the selected temperature will increase by 2 °F 30 minutes after the mode is selected.  The temperature will then increase by another 2 °F after an additional 30 minutes.  This new temperature will be maintained for 7 hours before returning to the originally selected temperature.  This ends the “Sleep” mode and the unit will continue to operate as originally programmed.  You may also cancel sleep mode at any time by again pressing the sleep button.

  • Why is my room air conditioner making noise?

    Room Air Conditioners, during operation, may make noise.  It is normal to hear ‘high pitch chatter’ a sound of rushing air, gurgle/hiss, pinging or swishing and vibration.  These are all normal.  For more definition of noises, please refer to your product’s Use and Care guide.

  • How do I store my room air conditioner for winter storage?

    If you plan to store the air conditioner during the winter, remove it carefully from the window according to the installation instructions.  Cover it with plastic or return it to its original carton.  NOTE:   To prevent rust or electrical connections from being damaged, store air conditioner in an upright position and a dry place.

  • Why is my Filter Reset light on?

    This feature is a reminder to clean the Air Filter (refer to Care and Cleaning section of the Use and Care Guide) for more efficient operation.  The LED light will illuminate after 250 hours of operation. After cleaning the filter, plug the unit back into the power source and reset the filter by pressing the ‘Filter Reset’ button and the light will go off.

Features

Multi-Speed Fan

Features three different fan speeds, for more cooling flexibility.

Energy Saver Mode

Reduce your utility bills in this mode. It cools similarly to central air, with the unit turning on and off at different intervals to ensure the room stays at the set temperature.

Sleep Mode

Maximum comfort throughout the evening hours with the added benefit of energy savings. With Sleep Mode, the temperature gradually increases a few degrees over the evening.

Programmable 24-Hour On/Off Timer

Customize times to fit your schedule for immediate comfort when you get home. The built in timer allows you to preset the unit to turn on and off in half hour increments.

Effortless™ Temperature Control

Our air conditioners maintain the preset room temperature, so you will remain comfortable at all times.

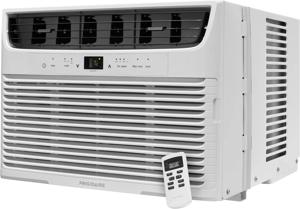

Remote Control

Allows you to precisely control the temperature and fan speed from across the room.

Easy-to-Clean Washable Filter

Capture dust from the air and keep your air conditioner working efficiently with our easy-to-clean washable filter.

SpaceWise® Adjustable Design Optional Side Panels

With the Adjustable Side Panels, the side panels will extend to best fit your window.

Power Cord

Comes with an extra long three-prong cord — makes extension cords unnecessary.

Effortless™ Restart

Automatically resumes operating at its previous settings when power is restored to your unit.

Clean Filter Alert

Alert notifies you when your filter needs to be cleaned so you don't have to keep track of it yourself.

Ready-Select® Controls

Easily select options with the touch of a button.

Electronic Controls

Allow you to set the comfort level to your preference, while a convenient temperature readout displays the set temperature.

Quick Cool & Quick Warm

When you need to cool down quickly or warm up faster, use the quick cool/warm mode to speed up the fan.

Specifications

General Specifications

  • Warranty: 1 Year Full
  • Annual Cost(.12 / kWH): 91
  • Window Width: 23" - 36"
  • Shipping Weight (lbs): 67
  • Reconditioned: No
  • Refrigerant: R32
  • Window Height: 15-1/2"
  • Power Type: Electric
  • Size: N/A
  • Installation Type: Window Mounted
  • Collection: Frigidaire
  • WARNING

    Cancer and Reproductive Harm -- www.P65Warnings.ca.gov

Electrical Specifications

  • Plug Type: LCDI 5-15P
  • Power Cord Length: 6' (6-1/2')
  • Voltage Rating: 115V 60Hz
  • Watts (Cool): 930
  • Amps (Cool): 9.3

Controls

  • Control Type: Electronic
  • Control Location: Center
  • Sleep Mode: Yes

Performance

  • BTU (Cool): 10000
  • Cool Area (Sq. Ft.): 450
  • Combined Energy Efficiency Ratio: 10.9
  • Dehumidification - Pints/Hr: 2.5
  • Energy Efficiency Ratio: 11.0
  • Performance Certification: AHAM

Certifications & Approvals

  • CSA Listed: No
  • ENERGY STAR® Certified: No
  • UL Listed: Yes
  • ETL Listed: No
  • NSF® Certified: No
  • ADA Compliant - All Brands: No
  • Safety Certification: UL/CUL (SA11087)

AC

  • Remote Control: Full Function
  • Vents Closed: Yes
  • Fan Speeds - Cool: 3
  • Motor RPM (Med): 1520
  • Air CFM (Low): 230
  • Filter Type: Easy-to-Clean Washable Filter
  • Fan Speed - Fan - General: 3
  • Filter Check: Yes
  • Energy Saver: Yes
  • Filter Access: Tilt-Out
  • Fresh Air: No
  • Air CFM (High): 265
  • Noise Level dB (Low): 55
  • Noise Level dB (Med): 57
  • Cabinet Louvers: Yes
  • Noise Level dB (High): 59
  • Charge - ozs: 14.1
  • Air Direction Control: 6-Way
  • Exhaust Vent: Yes
  • Low Voltage Start-up: Yes
  • Fan Auto: Yes
  • Motor RPM (High): 1590
  • Motor RPM (Low): 1450
  • Slide-Out Chassis: No
  • Clean Air Ionizer: No
  • Window Mounting Kit: Pleated Quick Mount
  • Air CFM (Med): 247
  • 24-Hour On/Off Timer: Yes
  • Rear Grill: No

Exterior Dimension

  • Height: N/A
  • Cut Out Width: N/A

Exterior Dimension

  • Width: 19"
  • Height: 14-1/2"
  • Depth: 21-1/2"

General Specifications

  • ProductLaunch: NA

Reviews

Rated 5 out of 5 by from love it. nice and quiet this is an excellent unit for my shop. runs very quiet and does a great job! very satisfied!
Date published: 2020-03-19
Rated 5 out of 5 by from Bought it due to old one wore out Am glad that I stumbled into it. Was going to shop over the winter, when I found this one. Looking forward to enjoying the air conditioner next summer. Somebody donated it to Habitat For Humanity Restore, which is where I found it. Hasn't even been used yet.
Date published: 2019-11-12
Rated 5 out of 5 by from Bought it due to old one wore out Am glad that I stumbled into it. Was going to shop over the winter, when I found this one. Looking forward to enjoying the air conditioner next summer. Somebody donated it to Habitat For Humanity Restore, which is where I found it. Hasn't even been used yet.
Date published: 2019-11-12
Rated 5 out of 5 by from Frigidaire - 10,000 BTU Room Air Conditioner Frigidaire is quiet, efficient, and cools my whole downstairs. best air conditioner on the market. great choice.
Date published: 2019-11-03
Rated 1 out of 5 by from Not happy After, only having purchased this unit and a larger Frigidaire unit less than 90 days ago and probably only using maybe a dozen times each, my smaller unit(this one) has developed rust in the corners of the rears of the units. Both units were properly installed and pitched correctly. I had just removed both units for the season and was very disappointed to see this on one of the units! And of coarse the return period is over. I will be reviewing the warranty information promptly!=/
Date published: 2019-10-13
Rated 4 out of 5 by from error i bought this a month ago and now its giving me A5 on the screen and it does not let me use the functions, how can i fix it?
Date published: 2019-07-15
Rated 5 out of 5 by from Small and powerful This is my 3rd unit for my house. Like I said, small but powerful
Date published: 2019-06-21
Rated 5 out of 5 by from I love this unit great features and ice cold I got this unit a month ago and I absolutely love it it's ice cold quiet and easy to maintain. And I know that it will last for many years to come because I have a Frigidaire AC unit that's over 10 years old and still going strong. You can't get any better than Frigidaire for dependability, durability,. Quality. There's just no one that can come close their standards in manufacturing.
Date published: 2018-09-25
