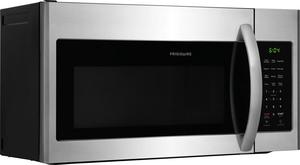

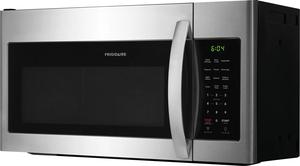

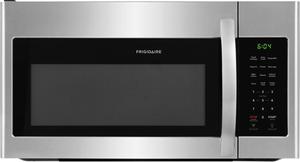

Frigidaire 1.7 Cu. Ft. Over-The-Range Microwave

29-7/8" W x 15-1/4" D x 16-13/32" H
ffmv1745ts

1.7 Cu. Ft. Over-The-Range Microwave is rated 4.4 out of 5 by 125.
  • y_2020, m_3, d_31, h_19
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.5
  • cp_1, bvpage1
  • co_hasreviews, tv_1, tr_124
  • loc_en_US, sid_FFMV1745TS, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_frigidaire
  • bvseo_sdk, net_sdk, 3.2.0.0
  • CLOUD, getAggregateRating, 215ms
  • REVIEWS, PRODUCT

Register This Product

Guides & Manuals

Complete Owner's Guide

Complete Owner's Guide

Wiring Diagram

Installation Instructions

Installation Instructions

Installation Instructions

Product Specifications Sheet

FAQs

  • Is it okay to install my microwave over a gas range?

    Yes. All of our over-the-range (OTR) microwaves are certified by Underwriters Laboratories for use over a gas range.

  • Why do metal objects spark or arch when I use them in the microwave, but the metal rack that comes with the microwave doesn’t?

    Unlike other metal objects, the metal rack included with your microwave is specially designed for safe use. The design takes into account the pattern of microwaves to prevent arching and sparks. For example:
    • The plastic spacers which hold the rack in place are engineered to keep it from arching against the microwave’s sides.
    • The rack’s tines and outer edges are engineered to form a fully enclosed object, avoiding the open ends that lead to arching.
    No other metal objects, including pans, utensils, etc. are approved for use inside a microwave.

  • Where does my OTR microwave vent?

    All of our over-the-range (OTR) microwaves are factory preset to vent internally – it will recirculate the air back into the room. However, it can also be converted to vent externally, or outside, if you prefer. If this is your preference, please let the installer know before they begin the initial installation and they will share the option that best suits your installation situation.

  • What hardware should I use for installing my microwave?

    Your over-the-range (OTR) microwave, it will come with all the necessary installation hardware. Each of our models comes with a complete set of installation hardware.

  • Do I need a special plate to cook popcorn in my microwave?

    If your microwave model has a glass tray or turn table, then follow the instructions printed on the popcorn label and place the bag on the turn table. In some instances, if you have a metal turn table (instead of glass), you do need to set the popcorn bag on a popcorn/bacon plate. This plate will lift the popcorn bag off of the microwave’s metal turntable, which can otherwise interfere with the metal contained in the popcorn bag.

  • How do I use Microwave Convection?

    For step-by-step instructions on how to use PowerPlus ™ 2-in-1 Convection in your Microwave, click here.

  • How do I change the oven light on my over-the-range microwave?

  • How do I change the surface light in my microwave?

  • How do I clean my microwave?

  • How and when should I use the ventilation fan on my over-the-range microwave?

Features

Cooktop LED Lighting

Cooktop LED Lighting

Make meal preparation and cooking simple with LED lighting that offers a clear, bright view of your cooktop.

Interior LED Lighting

Interior LED Lighting

LED interior microwave light stays on while your dish cooks.

One-Touch Options

One-Touch Options

Our microwaves feature easy-to-use one-touch buttons so you can cook baked potatoes, popcorn or even add 30 seconds with the touch of a button.

Fits-More™ Capacity

Fits-More™ Capacity

Extra-Large microwave provides 1.7 cu. ft. of cooking space and will hold almost any dish - even a 13" x 9" baking dish.

Multi-Stage Cooking Option

Multi-Stage Cooking Option

Our Multi-Stage Cooking option allows you to program power levels and cooking times in advance, customizing your microwave to your cooking needs.

Two Speed Ventilation

Two Speed Ventilation

Over-the-range microwave doubles as a hood offering ventilation with two fan speeds.

Zero-Clearance Door

Zero-Clearance Door

The microwave door is guaranteed to open up to a 90° angle without touching any adjacent walls, helping you adapt to any compact spaces in your kitchen.

Extra-Large 13-1/2" Diameter Glass Turntable

Extra-Large 13-1/2" Diameter Glass Turntable

Big bowls and large casserole dishes are no problem for our extra-large glass turntable. It rotates for even cooking.

Electronic Clock / Timer

Electronic Clock / Timer

Helps you keep track of cook times.

Auto-Reheat Options

Auto-Reheat Options

Control Lock

Control Lock

Charcoal Vent Filters

Charcoal Vent Filters

Specifications

General Specifications

  • Frigidaire Collection: Yes
  • Product Weight (lbs): 53
  • Shipping Weight (lbs): 59
  • Power Type: Electric
  • Size: 1.7 Cu. Ft.
  • Installation Type: Over-the-Range
  • Collection: Frigidaire Frigidaire

Exterior Specifications

  • Handle Color: Stainless Steel
  • Exterior Finish: Stainless Steel

Vent & Light System

  • Exhaust Fan Speeds: 2 speeds - 105/300 CFM
  • Vent Style: Hidden
  • Ducted / Ductless Vent Installation: Yes
  • Grease Filter (Dishwasher Safe): 2 - Yes
  • Cooktop Light: LED 6 Light Module
  • Lights: 2
  • Auto-start Heat Sensor: Yes

Certifications & Approvals

  • UL/cUL Approval: No
  • CDRH Approval: Yes

Capacities

  • Capacity (Cu. Ft.): 1.7

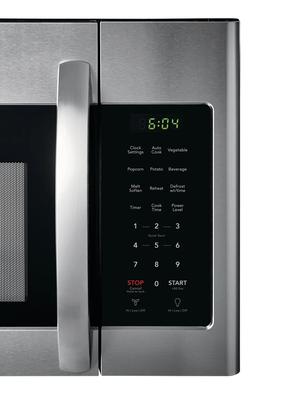

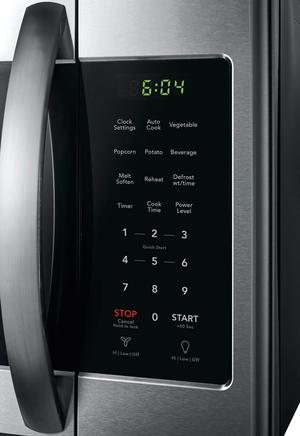

Controls

  • Controls: Membrane
  • Display Type: LED
  • Display Color: Green
  • Touch Pad Buttons: 24
  • Electronic Clock: Yes
  • Timer Function: 99:99
  • Stop / Cancel Button: Yes
  • Start Button: Yes
  • Quick Settings (Time): Yes 1 - 6
  • Add 30 Seconds: Yes
  • Numeric Touch Pad: Yes

Accessories

  • 36" Filler Panel Kit (White): Optional order item no. MWFILKTWH
  • 36" Filler Panel Kit (Black): Optional order item no. MWFILKTBK
  • 36" Filler Panel Kit (Stainless Steel): Optional order item no. MWFILKTSS

Electrical Specifications

  • Power Supply Connection Location: Right Rear Top
  • Voltage Rating: 120V 60Hz
  • Connected Load (kW Rating) @ 120V: 1.6
  • Amps @ 120 Volts: 13

Microwave Oven Specifications

  • Watts: 1000
  • Microwave Turntable Diameter: 13 19/32"
  • Interior Light Wattage: LED
  • Frequency (Mhz): 2450

Auto Features

  • Auto Defrost Options: Yes - Weight and Time
  • Auto Reheat Options: Yes
  • Auto Popcorn: Yes - Options for 1.75/3.0/3.5 oz.
  • Baked Potato Button: Yes

Exterior Dimensions

  • Width: 29-7/8"
  • Depth: 15-1/4"
  • Height: 16-13/32"

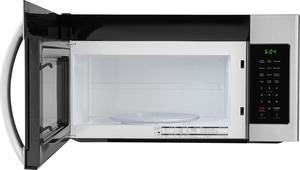

Internal Specifications

  • Oven Interior: White
  • Interior Light: Yes
  • Microwave Interior Width: 20-1/4"
  • Microwave Interior Depth: 14-13/32"
  • Microwave Interior Height: 9-1/4"

User Modes

  • Child Lock: Yes
  • Clock: Yes

Cut-Out Dimensions

  • Cut-Out Width: 30"
  • Cut-Out Depth (Min): 12"
  • Cut-Out Depth (Max.): 14"
  • Cut-Out Height: 17"
  • Cut-Out Height (Min): 16-3/4"
  • Cut-Out Height (Max): 17"

Reviews

Rated 4 out of 5 by from 605 Cannon Court Purchased in a bundle to do a kitchen remodel. Great choice!
Date published: 2020-03-28
Rated 5 out of 5 by from Works great No problems at all with this microwave. Cooks great.
Date published: 2020-03-26
Rated 5 out of 5 by from Came with the house So far this microwave is working great. No complaints. It does what it is supposed to do!
Date published: 2020-03-26
Rated 5 out of 5 by from Very nice! Just bought a new house with a kitchen fully furnished with Frigidaire appliances. I'll never forget about leaving something in the microwave with this one--it won't let me! I love the sleek look and the easy access vent fan and light for cooking on the stove, also.
Date published: 2020-03-25
Rated 4 out of 5 by from Can read the control panel I chose this unit because my wife could read the buttons. I bought a GE range but I lie the looks of the Frigidaire better. I wish the wattage was 1300 instead of the measly 1K.
Date published: 2020-03-21
Rated 5 out of 5 by from Easy to use. I brought this several months ago. I am very happy with this unit. Works very well.
Date published: 2020-03-19
Rated 5 out of 5 by from Nice cost effective unit Looks very good over my range, works perfectly fine, does what is supposed to do.
Date published: 2020-03-19
Rated 3 out of 5 by from Has everything I wanted Fan and light are great, reheats and thaws the way it should, only flaw is it gets a little noisy when it's cooking, other than that it works perfect
Date published: 2020-03-12
