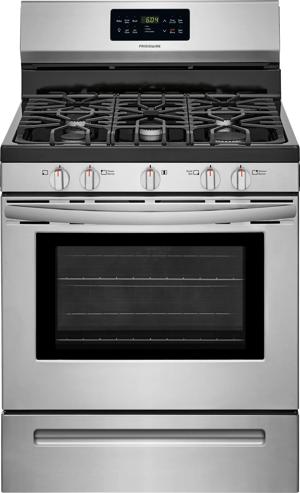

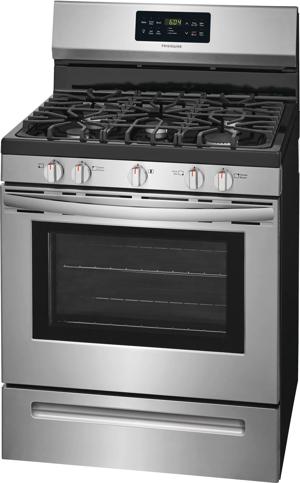

30'' Gas Range

29-7/8" W x 25 3/4" D x 47" H
ffgf3056ts

Register This Product

Guides & Manuals

Complete Owner's Guide

Wiring Diagram

Installation Instructions

Product Specifications Sheet

Instrucciones de instalación

Guide d'utilisation complet

Instructions d'installation

Feuille de spécifications du produit

Specifications

General Specifications

  • Adjustable Leveling Legs: 4 Adjustable
  • Power Type: Gas
  • Size: 30''
  • Installation Type: Free-Standing
  • Collection: Frigidaire
  • WARNING

    Cancer and Reproductive Harm -- www.P65Warnings.ca.gov

Internal Specifications

  • Oven 1 Interior Color: Slate Blue
  • Oven 1 Interior Depth: 19-1/8"
  • Oven 1 Interior Height: 18-5/8"
  • Oven 1 Interior Width: 24-3/8"

Drawer

  • Drawer Functionality: Storage
  • Handle: Stainless Steel

Electrical Specifications

  • Minimum Circuit Required (Amps): 5A
  • Voltage Rating: 120V 60Hz

Certifications & Approvals

  • Agency Approval: CSA Certified
  • Sabbath Mode: No

Cooktop

  • Knob Color: Stainless Appearance

Exterior

  • Cooktop Finish: Black Porcelain
  • Door Finish: Stainless Steel
  • Drawer Finish: Stainless Steel
  • Handle Color: Stainless Steel
  • Manifold Finish: Stainless Steel

Capacities

  • Total Capacity - Cu. Ft.: 5

Cooking Controls

  • Bake: Yes
  • Broil: Yes
  • Cancel Button: Yes
  • Set Clock: Yes
  • Door Lock: Yes
  • Lockout: Yes
  • Quick Bake: Yes
  • Self-Clean: 2 3 Hours
  • Start Button: Yes
  • Probe: No
  • Timer: Yes

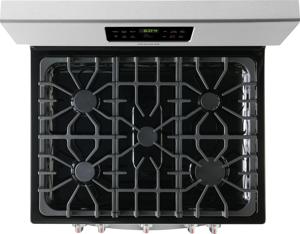

Cooktop Specifications

  • Center: 9500 BTU (Round)
  • Cooking Surface: Color-Coordinated Porcelain
  • Electronic Ignition: Yes
  • Grate Color: Black Matte
  • Grate Material: Cast Iron
  • Grates: 3 Continuous Grates
  • Knob Type: Color Coordinated
  • Left Front: 9500 BTU
  • Left Rear: 12000 BTU
  • Right Front: 17000 BTU
  • Right Rear: 5000 BTU

Exterior Specifications

  • Exterior Finish: Painted
  • Manifold Panel: Color-Coordinated

Oven Specifications

  • Bake: 18000 BTU
  • Baking System: Even Baking Technology
  • Oven 1 Broil: 13500 BTU
  • Oven 1 Broiling System: Vari-Broil™ High/Low
  • Cleaning System: Self Clean
  • Oven 1 Convection System: Quick Bake
  • Hidden Bake Element: Yes
  • Interior Lighting: 1 Incandescent
  • Oven 1 Rack Configuration: 2 Standard
  • Oven 1 Rack Positions: 6 positions
  • Oven 1 Type: Main
  • Oven 1 Window: Extra-Large Visualite®

Exterior Dimensions

  • Height: 47"
  • Width: 29-7/8"
  • Depth: 25 3/4"

Weight and Dimensions

  • Product Weight (lbs): 195
