Features

Compact design for smaller kitchen spaces.

Compact design for smaller kitchen spaces.

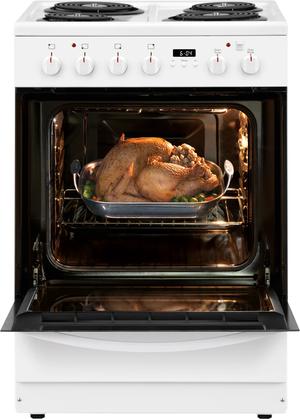

This 24" electric range is compact in design, but not in capacity - oven fits up to a 10 lb. turkey.

Cleanup is easier  with Hidden Bake

Cleanup is easier with Hidden Bake

Keeping the bottom of your oven clean is easier with a hidden heating element.

Storage Drawer

Storage Drawer

Convenient storage drawer offers extra space to store your cookware.

Color-Coordinated Knobs

Color-Coordinated Knobs

Stylish knobs that match the finish of the range.

ADA Compliant

ADA Compliant1

Specifications

General Specifications

  • Power Type: Electric
  • Size: 24''
  • Installation Type: Free-Standing
  • Collection: Frigidaire

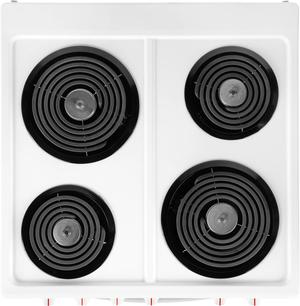

Cooktop Specifications

  • Bowl Type: Black Porcelain
  • Cooking Surface: Slabtop Coil with Porcelain Bowls
  • Hot-Surface Indicator Light: 2 - Red
  • Knob Color: Color-Coordinated
  • Knob Type: Plastic
  • Left Front: 6" - 1500 Watts
  • Left Rear: 8" - 2400 Watts
  • Right Front: 8" - 2400 Watts
  • Right Rear: 6" - 1500 Watts

Electrical Specifications

  • Amps @ 240 Volts: 31.25
  • Minimum Circuit Required (Amps): 40A
  • Power Supply Connection Location: Left Bottom Rear
  • Voltage Rating: 240V / 208V 60Hz

Certifications & Approvals

  • ADA Compliant: Yes
  • Sabbath Mode (Star-K® Certified): No

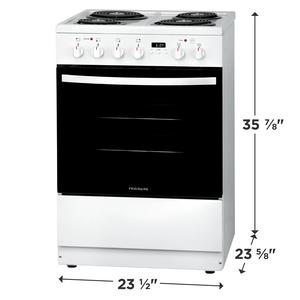

Exterior Dimensions

  • Height: 35"
  • Width: 23-1/2"
  • Depth: 23-5/8"

  • : Front Control

Oven Specifications

  • Oven 1 Bake: 4 pass 1000 Watts
  • Oven 1 Broil: 4 pass 1650 Watts
  • Oven 1 Broiling System: High - Low
  • Oven 1 Cleaning System: Manual Clean
  • Oven 1 Interior Color: Black
  • Oven 1 Interior Depth: 16-1/16"
  • Oven 1 Interior Height: 12-7/8"
  • Oven 1 Interior Lighting: Halogen
  • Oven 1 Interior Width: 16-3/8"
  • Oven 1 Rack Configuration: 2 Standard
  • Oven 1 Rack Positions: 4 positions
  • Oven 1 Type: Main
  • Oven Window: Extra-Large

Drawer

  • Drawer Functionality: Storage
  • Drawer Handle: Integrated

Capacities

  • Oven 1 Capacity: 1.9

Oven

  • Baking System: Hidden Bake
  • Hidden Bake Element: 4 pass 1000 Watts

Exterior Specifications

  • Drawer Finish: Color-Coordinated with Integrated Handle
