Quick Bake Convection
Bake faster and more evenly with Quick Bake Convection.
Even Baking Technology
Our even baking technology ensures even baking every time.
One-Touch Self Clean
Your oven cleans itself - so you don't have to. Self clean options available in 2, 3 and 4-hour cycles.
Get meals on the table faster with our 3,000W element - water boils faster than the traditional setting.
With our extra-large 12" element, you have more flexibility to fit larger pots and pans.
SpaceWise® Expandable Elements
Flexible elements expand to meet your cooking needs - big or small.
Check on the status of your dish without having to open the oven door.

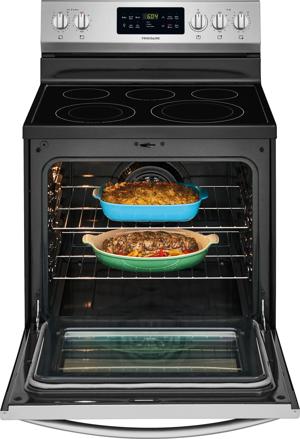

Our large capacity oven gives you room to cook more dishes at once.
Keep Warm Zone
Keep food warm until everything — and everyone — is ready.
Store-More™ Storage Drawer
With the Store-More™ Storage Drawer, you will have extra space to store your cookware.
- Adjustable Leveling Legs: 4 Adjustable
- Product Weight (lbs): 175
- Power Type: Electric
- Size: 30''
- Installation Type: Free-Standing
- Collection: Frigidaire
- Oven 1 Cleaning System: Self-Clean
- Oven 1 Interior Lighting: 1 Incandescent
- Control Panel Finish: Stainless Steel
- Door Finish: Glass with Stainless Steel
- Handle Color: Stainless Steel
Certifications & Approvals
- ADA Compliant: No
- Agency Approval: UL
- Sabbath Mode: No
- Center Rear: Warming Zone - 100 Watts
- Cooking Surface: Upswept Black Smoothtop
- Element On Indicator Light: 1 Clear
- Hot-Surface Indicator Light: 1 Clear
- Knob Color: Color-Coordinated
- Knob Type: Plastic
- Left Front: 6" to 9" - 1400/3000 Watts
- Left Rear: 6" - 1200 Watts
- Right Front: 9" to 12" - 1800/3000 Watts
- Right Rear: 6" - 1200 Watts
- Cooktop Surface Type: smooth surface
- Cooktop Finish: Color-Coordinated Porcelain
- Exterior Finish: Painted
- Bake: Yes
- Broil: Broil Variable (400 - 500°F)
- Cancel: Yes
- Clock: Yes
- Delay Clean: Yes
- Automatic Oven (Delay Cook & Off): Yes
- Lockout: Yes
- Lower Drawer Controls: Storage
- Self-Clean: 2 3 Hours (Scroll thru)
- Probe: No
- Timed Bake: Yes
- Timed Shut-off: 12 hours
- Timer: Yes
- Control Lock: Yes
- Height: 47-3/4"
- Width: 29-7/8"
- Depth: 28-13/32"
- Amps @ 240 Volts: 11.5 / 8.5
- Minimum Circuit Required (Amps): 40A
- Power Supply Connection Location: Rear Centerline Lower
- Voltage Rating: 120V / 240V or 120V / 208V 60Hz
- Bake: 3500 Watts
- Baking System: Even Baking Technology
- Broil: 3600 Watts
- Broil System: Vari-Broil™ High/Low
- Hidden Bake Element: Yes
- Oven 1 Interior Depth: 19-1/8"
- Oven 1 Interior Height: 19-3/4"
- Oven 1 Interior Width: 24-3/8"
- Oven 1 Rack Configuration: 2 Standard
- Oven 1 Rack Positions: 6 positions
- Oven 1 Type: Main
- Oven 1 Window: Extra-Large Visualite®
- Drawer Functionality: Storage
- Handle: Integrated
