Features

Quick Boil

Quick Boil

Get meals on the table faster with our 3,000W element - water boils faster than the traditional setting.

SpaceWise® Expandable Elements

SpaceWise® Expandable Elements

Flexible elements expand to meet your cooking needs - big or small.

Extra-Large Window

Extra-Large Window

Check on the status of your dish without having to open the oven door.

Manual Clean Oven

Manual Clean Oven

Keep Warm Zone

Keep Warm Zone

Keep food warm until everything — and everyone — is ready.

Store-More™ Storage Drawer

Store-More™ Storage Drawer

With the Store-More™ Storage Drawer, you will have extra space to store your cookware.

Watch Video

Specifications

General Specifications

  • Adjustable Leveling Legs: 4 Adjustable
  • Product Weight (lbs): 180
  • Power Type: Electric
  • Size: 30''
  • Installation Type: Free-Standing
  • Collection: Frigidaire

Oven Specifications

  • Oven 1 Cleaning System: Manual Clean

Exterior Specifications

  • Control Panel Finish: Stainless steel
  • Door Finish: Glass with Stainless Steel overlay
  • Handle Color: Stainless Steel

Capacities

  • Total Capacity: 4.8

Certifications & Approvals

  • ADA Compliant: No
  • Agency Approval: UL
  • Sabbath Mode: No

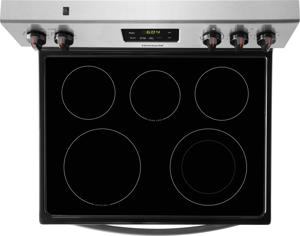

Cooktop

  • Center Rear: Warming Zone - 100 Watts
  • Cooking Surface: Upswept Black Smoothtop
  • Element On Indicator Light: 1 Clear
  • Hot-Surface Indicator Light: 1 Clear
  • Knob Color: Black with Red Indicator Line
  • Knob Type: Plastic Black
  • Left Front: 9" - 3000 Watts
  • Left Rear: 6" - 1200 Watts
  • Right Front: 6" to 9" Expandable Element (1400/3000 Watts)
  • Right Rear: 6" - 1200 Watts
  • Cooktop Surface Type: smooth surface

Exterior

  • Cooktop Finish: Black Porcelain

Cooking Controls

  • Bake: Yes
  • Broil: Broil Variable (400 - 500°F)
  • Cancel: Yes
  • Delay Clean: No
  • Automatic Oven (Delay Cook & Off): Yes
  • Lockout: No
  • Lower Drawer Controls: Storage
  • Self-Clean: No
  • Probe: No
  • Timed Bake: Yes
  • Timed Shut-off: 12 hours
  • Timer: Yes

Dimensions: Exterior

  • Height: 47"
  • Width: 29-7/8"
  • Depth: 25-3/4"

Electrical Specifications

  • Connected Load (kW Rating) @ 120V: 12.5 / 9.5
  • Minimum Circuit Required (Amps): 40A
  • Power Supply Connection Location: Rear Centerline Lower
  • Voltage Rating: 240V / 208V 60Hz

Oven

  • Bake: 2600 Watts
  • Baking System: Even Baking Technology
  • Broil: 3000 Watts
  • Broil System: Vari-Broil™ High/Low
  • Oven 1 Interior Depth: 18-3/4"
  • Oven 1 Interior Height: 19-3/4"
  • Oven 1 Interior Width: 23"

Drawer

  • Drawer Functionality: Storage

Accessories

  • Griddle: Optional
