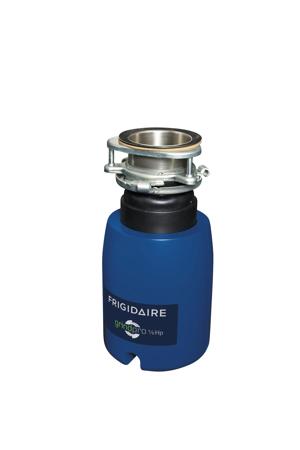

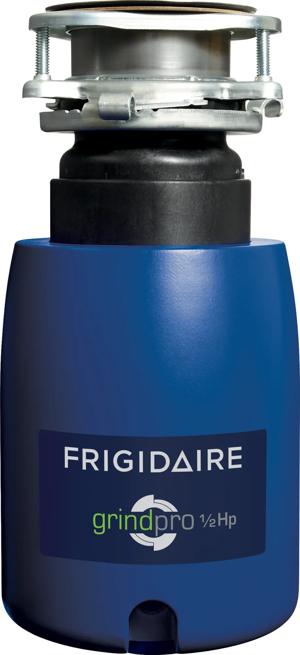

Frigidaire 1/2 HP Waste Disposer

7-11/16" W x 13-7/16" H
FFDI501DMS

Register This Product

Guides & Manuals

Complete Owner's Guide

Product Specifications Sheet

Features

High-Torque GrindPro™ Magnet Motor

Creates more power immediately to quickly grind through waste without jamming, using less water and electricity.

Easy-Fit Design

Easy-Fit Design

Compact, lightweight design fits most existing sink mounts for quick installation.

Best Grinding Performance

The power, speed and capacity to quickly grind large amounts of food waste into fine particles and efficiently wash them away.

2 Year Limited Warranty

See warranty for complete details.

Continuous-Feed Operation

Dispose of food waste continuously by using wall switch to activate.

Sound Guard

Reduces noise for quieter operation.

Septic-System Safe Disposer^

|For properly-sized septic systems.

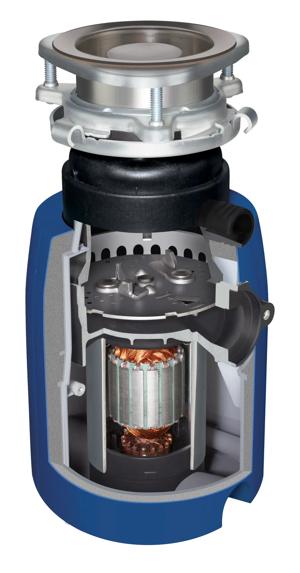

Stainless-Steel Grinding System

Stainless-Steel Grinding System

Uses jam resistant dual cutting stainless steel impellers to resist corrosion and extend the useful life of your disposer.

Splash Guard

Keeps food waste from splashing out of disposer while in use.

Direct-Wire Connection

Specifications

General Specifications

  • Feed Type: Continuous
  • Motor HP: 1/2
  • Motor RPM: 2,600
  • Motor Type: HI-Torque Permanent Magnet
  • Mounting Type: Easy Fit
  • Sound Package: Standard
  • Turntable Material: Galvanized Steel
  • Warranty: 2 years
  • Power Type: Electric
  • Size: N/A
  • Installation Type: Under Cabinet
  • Collection: Frigidaire

Exterior Specifications

  • Styling: Shell

Capacities

  • Unit Capacity: Large

Accessories

  • Sink Flange Kit: Stainless Steel

Disposer Features

  • Drain Connector: Yes
  • Drain Elbow: Yes
  • Drain Outlet Diameter (in.): 1-1/2"
  • Impellers: Stainless Steel Jam Resistant Dual Impellers
  • Manual Reset Overload Protector: Yes
  • Armature Shaft Materials: Cold-Rolled Carbon Steel
  • Sink Stopper: Yes
  • Splash Guard: Yes - Non-Removable

Exterior Dimensions

  • Height: 13-7/16"
  • Width: 7-11/16"

Controls

  • Controls: Wall Switch

Electrical Specifications

  • Amps @ 120 Volts: 4.5
  • Voltage Rating: 115V, 60Hz
  • Power Connection: Direct Wire
